model | PAT5000 |
Pixel | 20.0MP |
Max frame rate | 20fps |
Maximum reading speed | 20pcs/S |
working distance | 50-20000mm |
lens focal length | 12mm,16mm,25mm,35mm |
field of view | 12mm lens 21×16 mm-929×697 mm |
Focus mode | Adjustable |
Light source type | Integrated light source design, fire pillar light source |
Trigger mode | Supports multiple trigger modes such as software trigger/external trigger/free running |
connector | 2 industrial-grade M12 connectors, respectively Ethernet and GPIO interfaces |
network interface | 100M Ethernet |
GPIO | RS232, 2 isolated inputs, 2 isolated outputs |
Communication method | RS232, Ethernet |
Communication protocol | TCP Client, FTP, TCP Server, RS232, Profinet, ModbusTCP, EtherNet/IP, MC, FINS |
LED indicator light | power, network, status, results |
Power supply method | Support DC16V/26V±10%, 1.5A input, adapt to industrial voltage environment |
Power consumption | <10W |
Product size | 47mm*60.6mm*40.1mm (excluding interface height) |
Product weight | <742g |
Protection level | IP65 |
Shell material | Aluminum alloy + glass front cover |
working temperature | -20℃～+50℃ |
Working humidity | 20%~95%, no condensation |
storage temperature | -30℃～+70℃ |

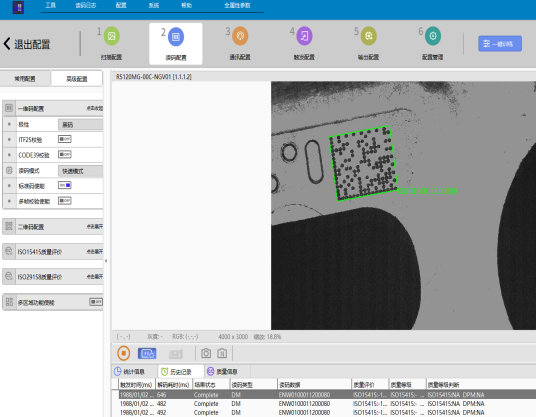

Supporting software | Vcrcode |
Function | Rich code reading types (one-dimensional code Code128/Code39/Code93/EAN, etc.; two-dimensional code QR/DM/DPM, etc.); code quality evaluation (ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415, ISO/IEC 15416) |
