model | PAT375 |
Pixel | 5.0MP |
Max frame rate | 50fps |
Maximum reading speed | 100pcs/S |
working distance | 50-2000mm |
lens focal length | 12mm |
field of view | 21×16mm-929×697mm |
Focus mode | Electric focus, supports one-button autofocus mode |
Light source type | Integrated light source design, white light/polarized/high brightness/diffuse light source, multiple light sources can be controlled independently |
Trigger mode | Supports multiple trigger modes such as software trigger/external trigger/free running |
connector | 2 industrial-grade M12 connectors, respectively Ethernet and GPIO interfaces |
network interface | 100M Ethernet |
GPIO | RS232, 2 isolated inputs, 3 isolated outputs |
Communication method | RS232, Ethernet |
Communication protocol | TCP Client, FTP, TCP Server, RS232, Profinet, ModbusTCP, EtherNet/IP, MC, FINS |
LED indicator light | power, network, status, results |
Power supply method | Support DC16V/26V±10%, 1.5A input, adapt to industrial voltage environment |
Power consumption | <6W |
Product size | 47mm*60.6mm*40.1mm (excluding interface height) |
Product weight | <152g |
Protection level | IP65 |
Shell material | Aluminum alloy + glass front cover |
working temperature | -20℃～+50℃ |
Working humidity | 20%~95%, no condensation |
storage temperature | -30℃～+70℃ |

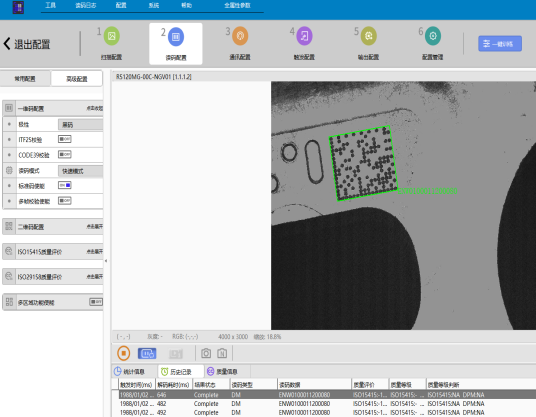

Supporting software | Vcrcode |

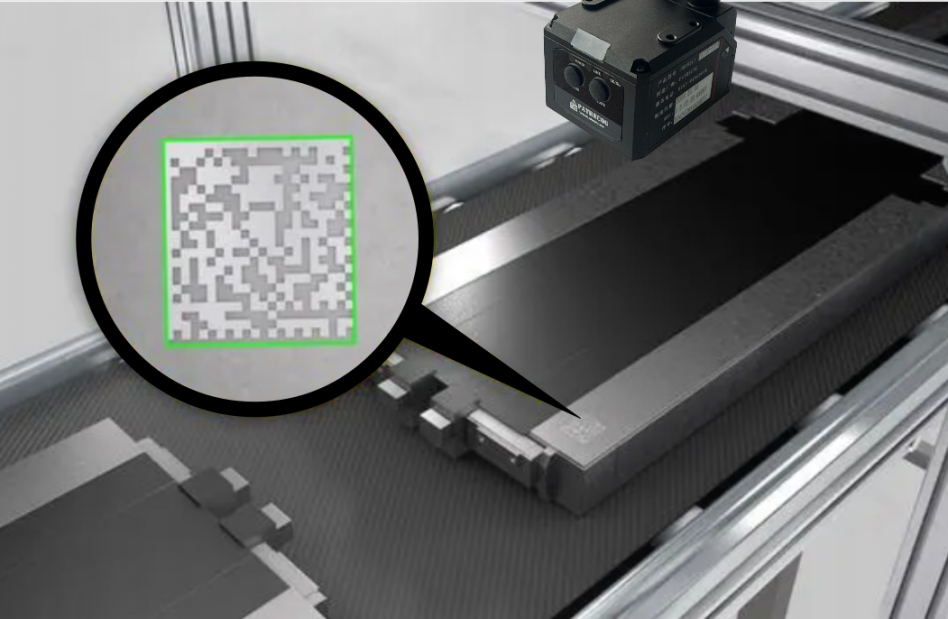

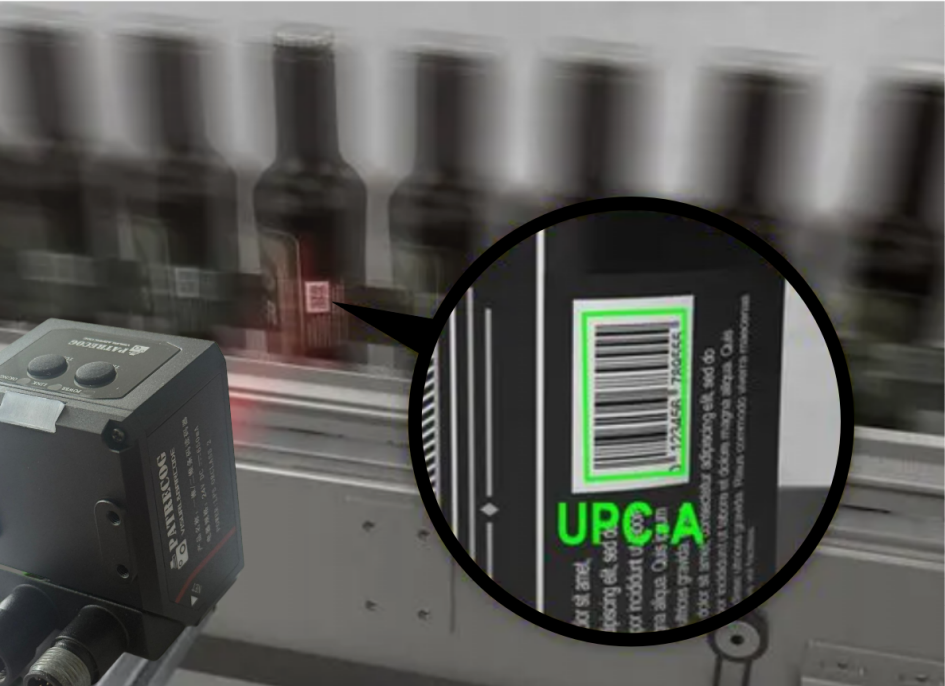

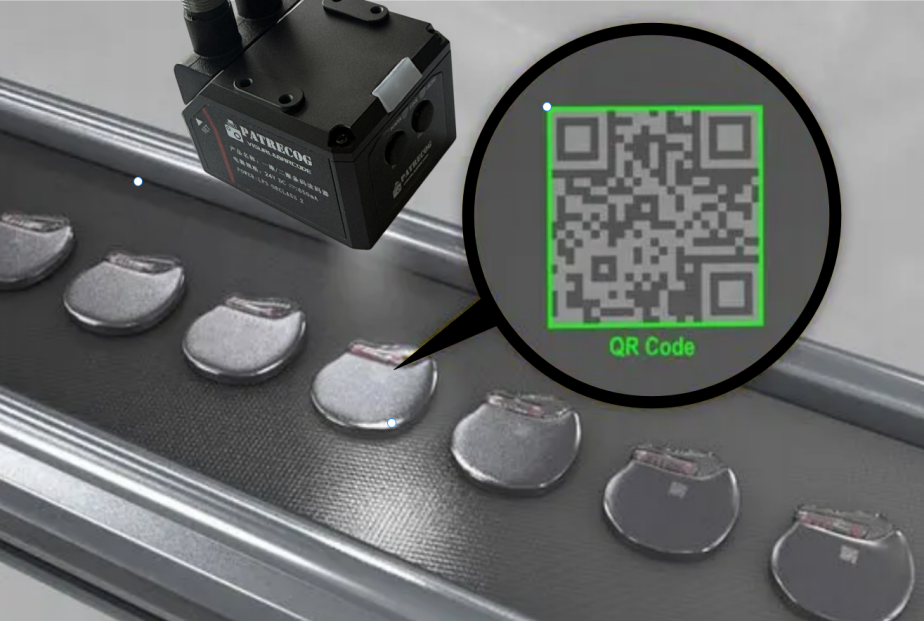

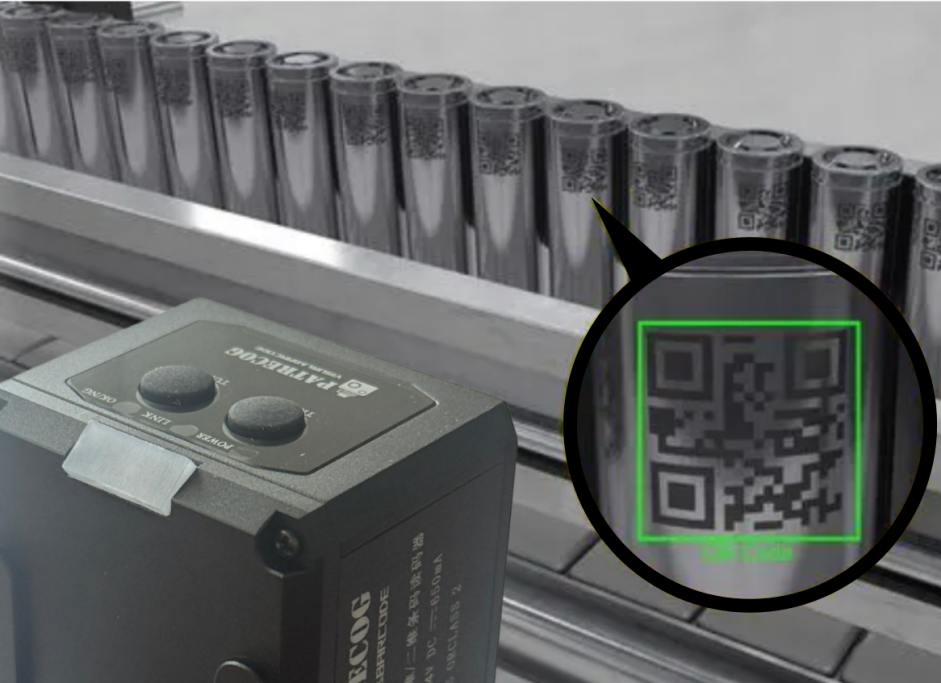

Function | Rich code reading types (one-dimensional code Code128/Code39/Code93/EAN, etc.; two-dimensional code QR/DM/DPM, etc.); code quality evaluation (ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415, ISO/IEC 15416) |
