Specifications
model | PAT1000 |
Pixel | 1.3MP |
fill light | Red/white two-color integrated fire pillar light source |
Trigger mode | Supports multiple trigger modes such as software trigger/external trigger/free running |
connector | Industrial grade M12 connectors, respectively Ethernet and GPIO interfaces |
Ethernet | 100M Ethernet |
GPIO | RS232, 1 isolated input, 1 isolated output, 1 configurable input and output |
communication | TCP,RS232 |
LED indicator light | Power indicator light, network indicator light, result display indicator light |
Lens type | Support M7 lens |
power supply | Support DC24V input, adapt to industrial voltage environment |
Power consumption | 12-24VDC power supply, no more than 2.5W |
size | 49.6mm x 49.1mm x 40.3mm (excluding cables) |
weight | <116g |
temperature | Working temperature -20°C~+50°C, storage -30°C~+70°C |
humidity | 20%~95%, no condensation |
software | Vcrcode |
Protection level | IP65 |
Certification | CE/FCC |

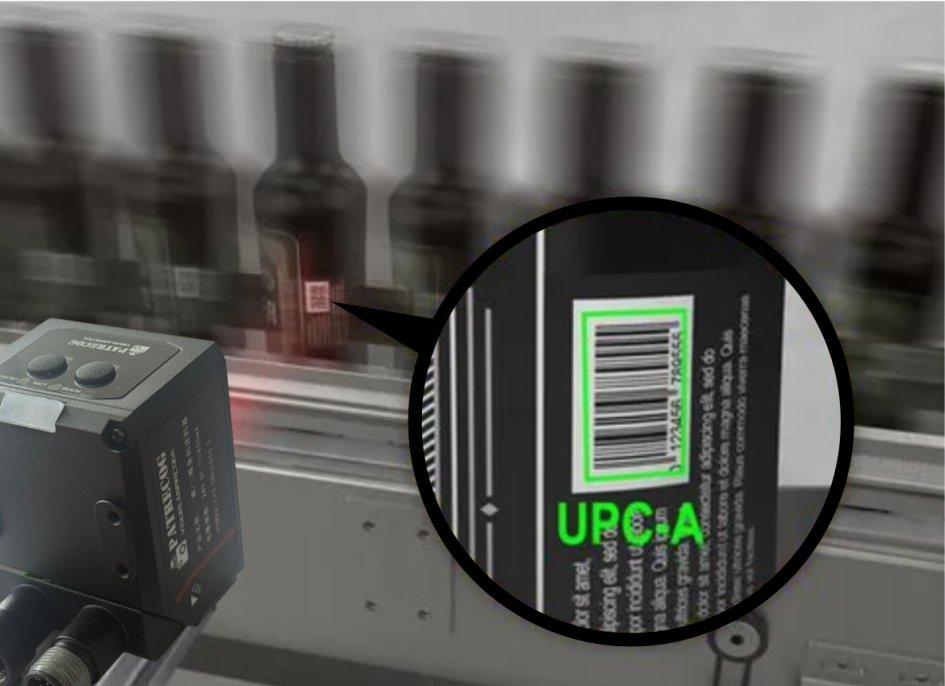

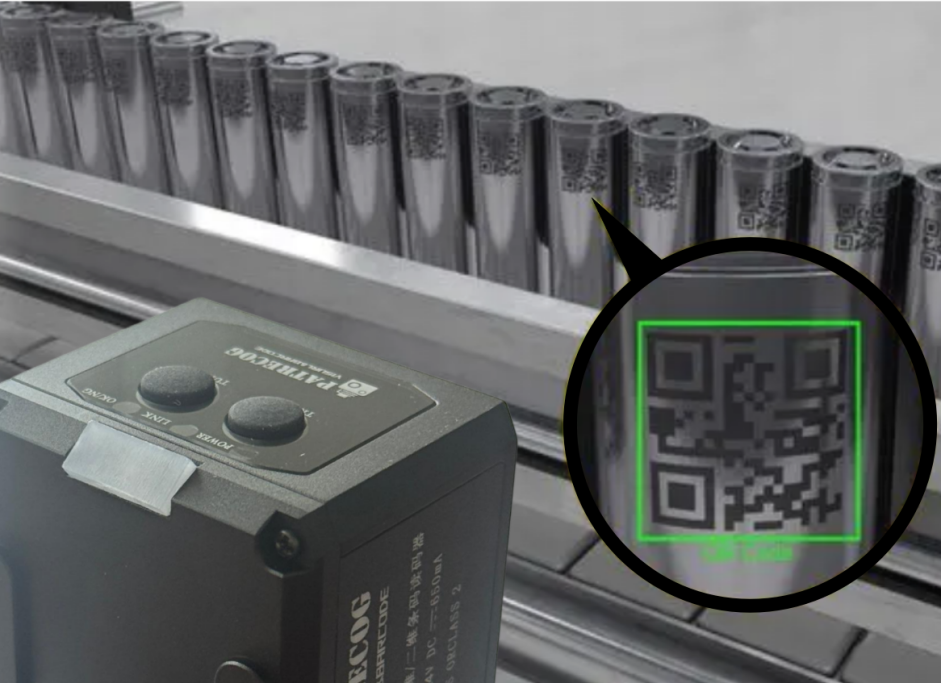

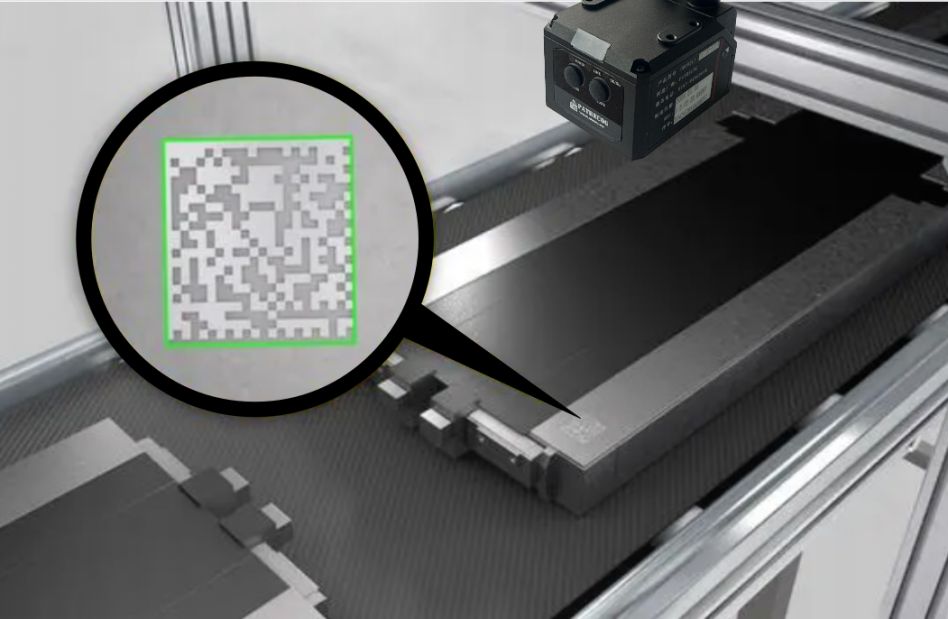

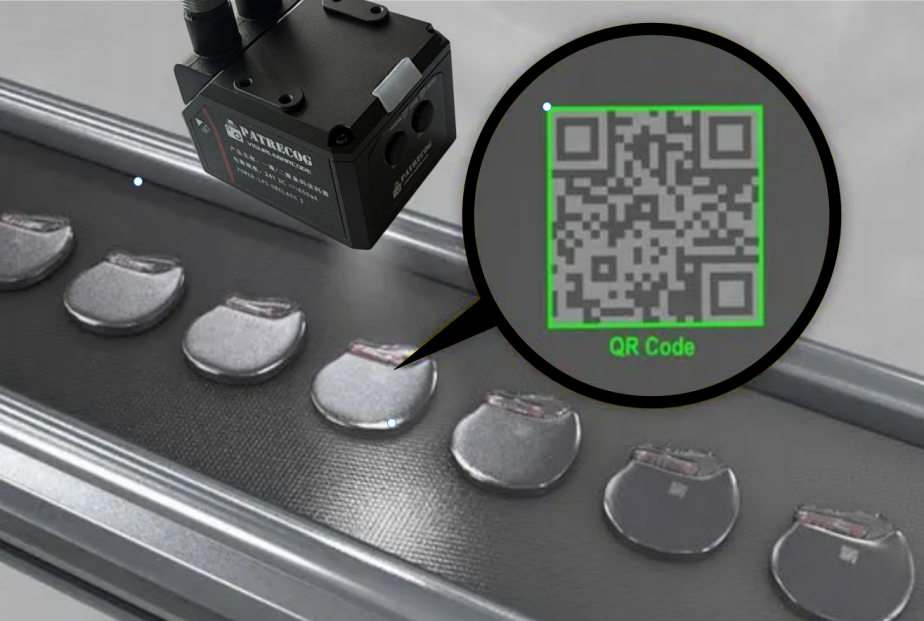

Function | Rich code reading (one-dimensional code Code128/Code39/Code93/EAN, etc.; two-dimensional code QR/DM, etc.) |
Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.

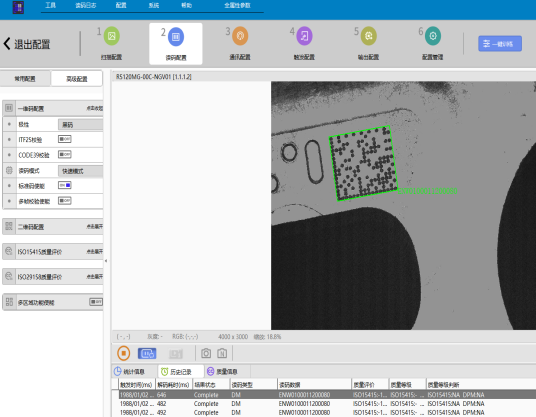

【Setting interface】
PLC communication
TCP Client, FTP, TCP Server, RS232, Profinet, ModbusTCP, EtherNet/IP, MC, FINS
