Specifications
model | T50U |
|
image sensor | 1/3-inch CMOS image sensor black and white 2309 (X) x 1300 (Y) (approx. 3 million pixels) |
Applicable QR code | Data Matrix(ECC200), QR Code / Micro QR Code, Vericode(※7) |
Reading angle | · Operations are parallel to the read window |
| · Free tilt and rotation direction |
Communication interface | . USB2.0 (Full Speed) |
power supply | Voltage | DC 5V±5% |
|
| Approx. 500 mA (when USB cable is connected) |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) | 0～40℃ |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～85% R (H without condensation) |
| Save ambient humidity | 35～85% R (H without condensation) |
| Vibration resistant | 10～55 Hz, amplitude 1.5 mm constant/3 directions x 1h each (※2) |
Appearance size | 199.4(H)×56(W)×38.8(D)mm |
weight | 252 (excluding wires) |
illumination | White LED |
minimum resolution | 25μm (0.025mm) |
Reading distance (※4) | 0～3mm |
Reading range (※5) | Horizontal 10mm × vertical 8mm |
Display | OLED |
Shell material | ABS and elastic resin |
optional | USB cable, 232 lines |
※1 When the lighting is at maximum lighting, using new batteries and within the specified room temperature, it is possible to scan once every 3 seconds. ※2 The above data are our company’s test values and are not guaranteed values.
※3 When reading applicable QR codes, the reading distance is based on the reading interface. ※4 When reading barcodes, the distance and reading window specified by our company are used as a guide.
※5 Please understand that the specifications and designs published in the catalog may be subject to change. ※6 If you need to read Vericode, please consult the company for authorization.

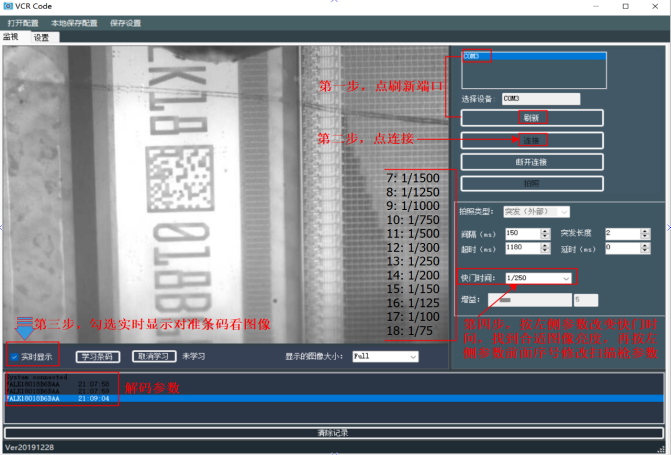

Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.
【Setting interface】
■ QR code engraved on LCD panel and glass
■ QR codes engraved on printed substrates in various original colors
■ QR code engraved on the curved surface of metal
PLC communication
1;232 communicates with PLC.
2; USB and PLC communication.
