Specifications
model | PAT900 |
|
image sensor | 1/3-inch CMOS image sensor black and white 1920 (X) x 960 (Y) (approx. 1.3 million pixels) |
Applicable QR code | Data Matrix(ECC200), QR Code / Micro QR Code, Vericode(※7) |
Reading angle | · Operations are parallel to the read window |
| · Free tilt and rotation direction |
Communication interface | . USB2.0 (Full Speed) |
power supply | Voltage | DC 5V±5% |
|
| Approx. 500 mA (when USB cable is connected) |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) | 0～40℃ |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～85% R (H without condensation) |
| Save ambient humidity | 35～85% R (H without condensation) |
| Vibration resistant | 10～55 Hz, amplitude 1.5 mm constant/3 directions x 1h each (※2) |
Appearance size | 199.4(H)×56(W)×38.8(D)mm |
weight | 179 (excluding cables and brackets) |
illumination | White LED |
minimum resolution | 25μm (0.025mm) |
Reading distance (※4) | 0～3mm |
Reading range (※5) | Horizontal 10mm×Vertical 8mm |
Display | OLED |
Shell material | ABS and elastic resin |
optional | USB cable, 232 line |

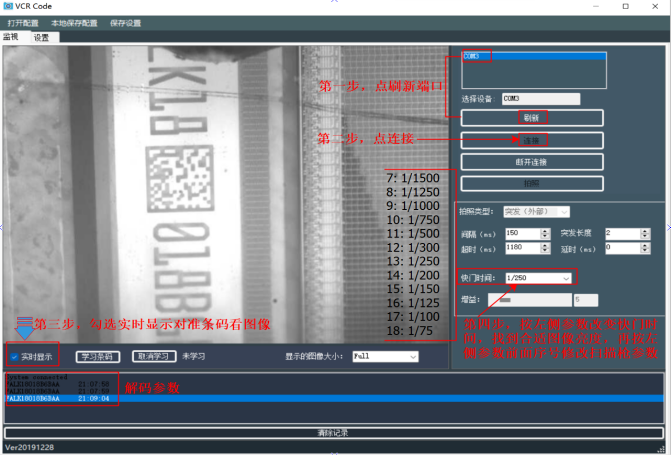

Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.
【Setting interface】
■ QR code engraved on LCD panel and glass
■ QR codes engraved on printed substrates in various original colors
■ QR code engraved on the curved surface of metal
PLC communication
1;232 communicates with PLC.
2; USB and PLC communication.
