Specifications
model | PAT9600 |
image sensor | 1/3-inch CMOS image sensor black and white (approximately 6 million pixels) |
Applicable | Defect detection, assembly positioning, characters (OCR), parts classification |
Reading angle | Operation is parallel to the reading window/free in tilt and rotation direction |
Communication interface | TCPIP/Serial/USB |
Power supply/voltage | DC 24V±5% |
Average current consumption | About 1500mA |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～80% RH (no condensation) |
| Save ambient humidity | 35～80% RH (no condensation) |
Appearance size | 117(H)×69(W)×155.3(D)mm |
weight | 1145 (excluding wire) |
illumination | White LED coaxial light source |
Display | OLED |
Shell material | Aluminum alloy |
Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.

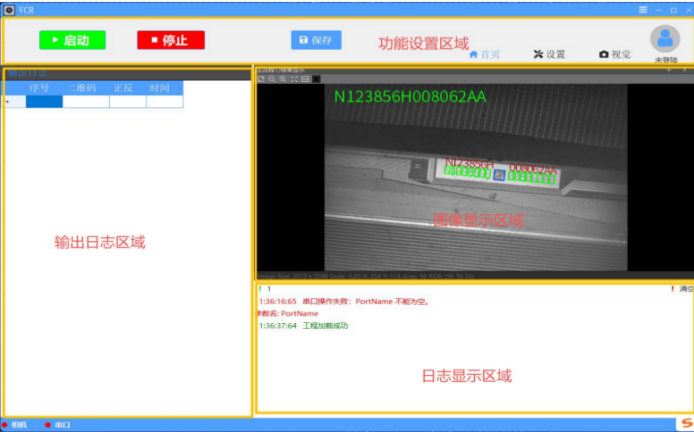

【Setting interface】
■ QR code numbers and characters imprinted on the LCD panel glass
■ QR codes engraved on printed substrates in various original colors
■ QR code engraved on the curved surface of metal
PLC communication
1; TCPIP communicates with PLC (server or client can be set up).
2;232 communicates with PLC.
3; USB and PLC communication.
