Specifications
model | IS5600 |
image sensor | 1/3-inch CMOS image sensor black and white (approximately 6 million pixels) |

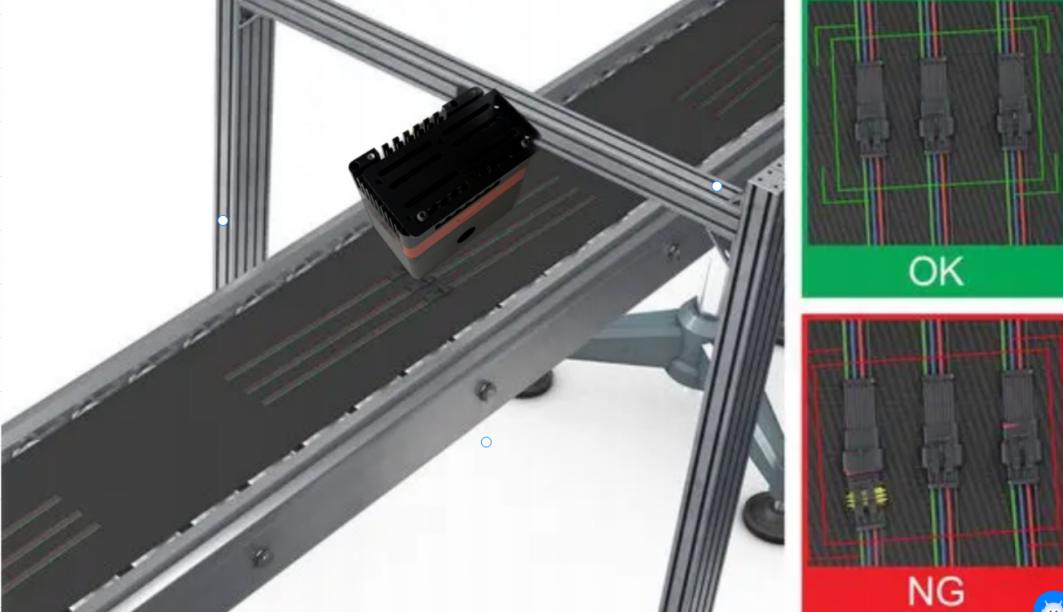

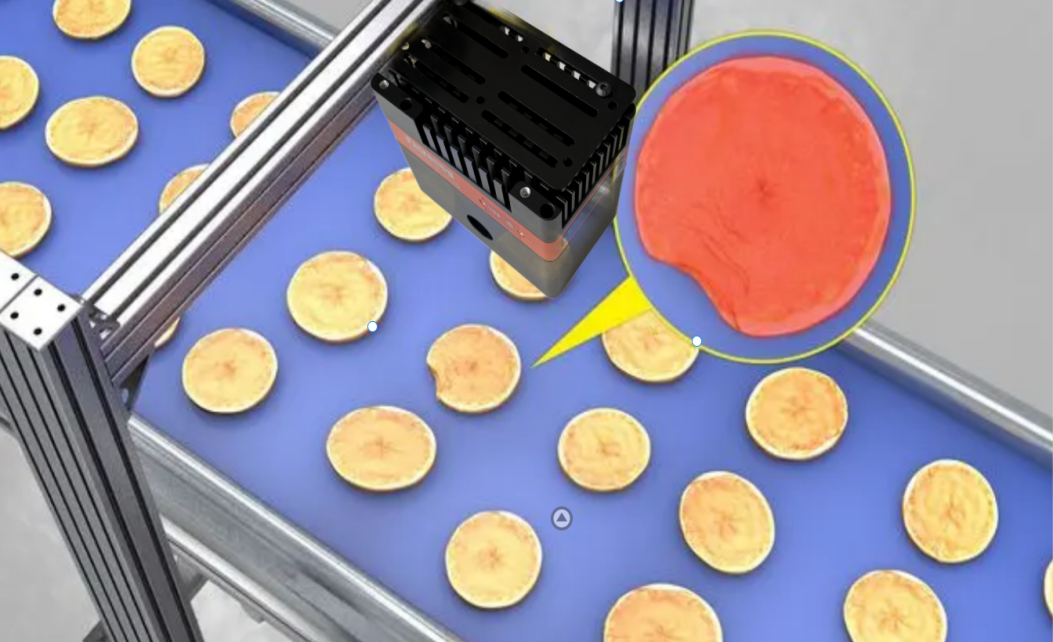

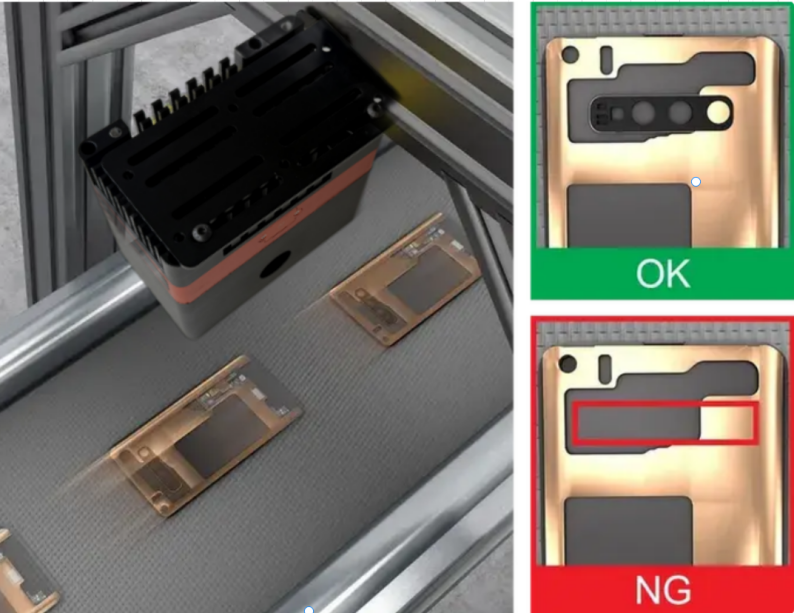

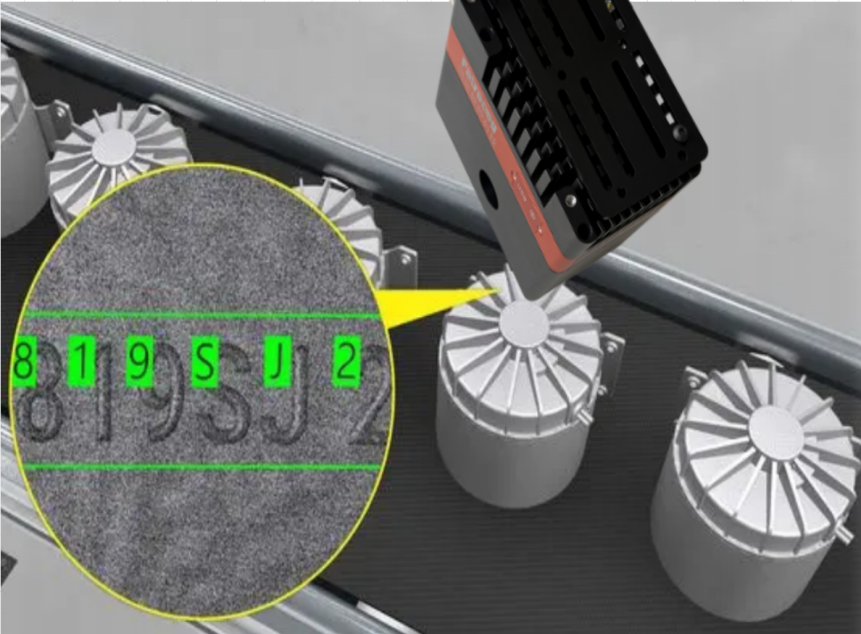

Applicable | Defect detection, assembly positioning, characters (OCR), parts classification |
Reading angle | Operation is parallel to the reading window/free in tilt and rotation direction |
Communication interface | TCPIP / serial port |
Power supply/voltage | DC 24V±5% |
Average current consumption | About 1500mA |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～80% RH (no condensation) |
| Save ambient humidity | 35～80% RH (no condensation) |
Appearance size | 117(H)×69(W)×105(D)mm |
weight | 980 (excluding wire) |
illumination | White LED ring light, white LED dome light source |
Display | OLED |
Shell material | Aluminum alloy |
Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.

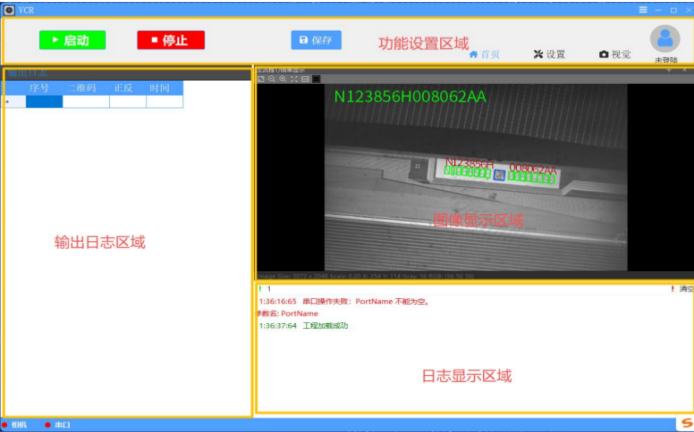

【Setting interface】
Thanks to the integrated multiple light sources (ring and dome), high-resolution images can be captured in different environments, providing excellent contrast and lighting effects. Easily and quickly adjust light color with just one click to enhance image quality and ensure accurate detection in different applications.
Accelerate automation in all industries by performing inspection tasks at unparalleled speed. Regardless of application, this flexible, industry-agnostic vision system maximizes throughput/throughput and accuracy
Pre-trained AI tools simplify the automation of different detection tasks, including basic presence/absence detection, advanced classification and text reading. Embedded AI tools deliver fast, reliable results in real time, helping you increase throughput/throughput, keep up with operations, and scale easily
PLC communication
1; TCPIP communicates with PLC (server or client can be set up).
2;232 communicates with PLC.
