model | PAT375GM |
image sensor | 1/3 inch CMOS image sensor black and white 3 million pixels |

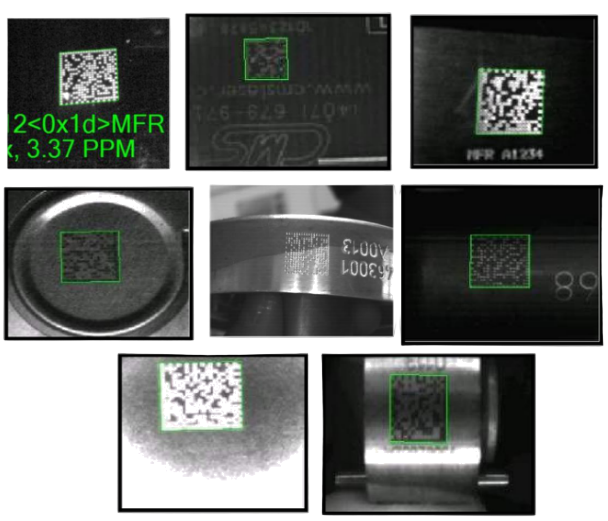

Applicable QR code | Data Matrix(ECC200)、QR Code/Micro QR Code |
Reading angle | · Elevation angle ±60°; oblique angle ±55° |
| · Free tilt and rotation direction |
Communication interface | ·Bluetooth | USB keyboard |
| ·USBCOM | RS 232 |
Bluetooth maximum communication distance (reference value) | BLE Bluetooth 5.0, single mode, Class 1, open air transmission distance 100 meters ※Obstacles (human body, metal, walls, etc.) and signal strength vary. |
power supply | Voltage | DC 5V±5% |
| Average current consumption | Approximately 1500 mA (placement of charging stand) | About 500mA |
|
| Approx. 500 mA (when USB cable is connected) ― |
|
| Special battery | Rated capacity: 3150mAh; Typical capacity: 3500mah; Removable battery |
| continuous working time | About 4h (※1)(※2) | Standby time is about 10 hours |
| Charging time | Charging using USB cable: 6~8 hours; using external 5V power supply: about 2.5 hours |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) 0～40℃ |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～85% R (H without condensation) |
| Save ambient humidity | 35～85% R (H without condensation) |
| Vibration resistant | 10～55 Hz, amplitude 1.5 mm constant/3 directions x 1h each (※2) |
size | 166.2*105.5*68.5mm |
weight | 428±3g (excluding wire) |
illumination | Intelligent adjustable diffuse light source: red white blue |
Recognition accuracy | 1D code: 3mil, 2D code: 5mil |
Reading depth of field (typical) | barcode density | depth of field |
| 5mil DM/QR | 3.7cm~7.2cm |
| 10mil DM/QR | 1.9cm ~ 15.9cm |
Shell material | ABS and elastic resin |
