Specifications
model | TY1500 |
image sensor | 2/3-inch CMOS image sensor black and white (approximately 20 million pixels) |
Applicable | Burst detection, all data collection, character (OCR) |
Camera debugging | Mechanical fully automatic debugging of different product positions |
Communication interface | TCPIP / serial port |
Power/Voltage | 220V |
Average current consumption | About 5 kilowatts |
Environmental resistance | Use ambient temperature | 10～40℃ (during charging) (※3), 0～40℃ (during normal use) |
| Save ambient temperature | -20～60 ℃ |
| Use ambient humidity | 35～80% RH (no condensation) |
| Save ambient humidity | 35～80% RH (no condensation) |
Appearance size | 2900(H)×1500(W)×2000(D)mm |
weight | About 600 kg (excluding wire) |
illumination | White LED light source |
Display | OLED |
Shell material | Aluminum alloy |

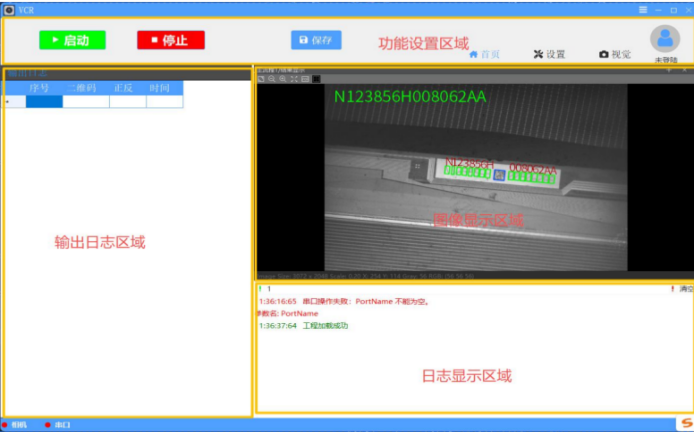

Simple read setting tool
Based on the real-time reading of the screen, select brightness and image processing to easily find the most suitable settings.
【Setting interface】
· Automatically load the Tray tray and palletize the sorted products.
· When the product is full, it will automatically drop one unit.
· Manually open 20 disks each time (default value is variable).
· After 20 trays of products are filled, they will be taken away manually (the default value is variable).
· The four code-reading cameras are independent of each other and can be shielded arbitrarily. If one fails, it will not affect the other three. However, the corresponding product with a fault is a work order B.
· There are two versions of code reader position change debugging: automatic debugging and manual debugging. Multiple models can be equipped with multiple corresponding motion trajectory programs.
· The code reading field of view is 20*16mm, and the minimum code reading accuracy is 0.015mm.
PLC communication
1; TCPIP communicates with PLC (server or client can be set up).
2;232 communicates with PLC.
