model | TY1020 |
Pixel | 12.0MP about (5440*3648) |
Max frame rate | 30fps |
Maximum reading speed | 30pcs/S |
working distance | 60-100mm |
Lens focal length | 35mm |
field of view | 17×14 mm (when the working distance is 60mm), 26×22mm (when the working distance is 100mm) |
Focus mode | adjustable lens |
Light source type | Integrated light source design, red/white/blue multi-color light sources are optional (default comes with white/infrared), multiple light sources can be controlled independently |
Trigger mode | Supports multiple trigger modes such as software trigger/external trigger/free running |
connector | 2 industrial-grade M12 connectors, respectively Ethernet, GPIO interface, USB keyboard |
network interface | 100M Ethernet |
GPIO | RS232, 2 isolated inputs, 3 isolated outputs |
Communication method | RS232, Ethernet |
Communication protocol | TCP Client, FTP, TCP Server, RS232, Profinet, ModbusTCP, EtherNet/IP, MC, FINS |
LED indicator light | power, network, status, results |
Power supply method | Support DC12V/24V±10%, 1.5A input, adapt to industrial voltage environment |
Power consumption | <10W |
Product size | (109mmH)X68mm(W)X55 (D)mm (excluding interface height) |
Product weight | <410g (excluding wire) |
Protection level | IP65 |
Shell material | Aluminum alloy + glass front cover |
working temperature | -20℃～+50℃ |
Working humidity | 20%~95%, no condensation |
storage temperature | -30℃～+70℃ |

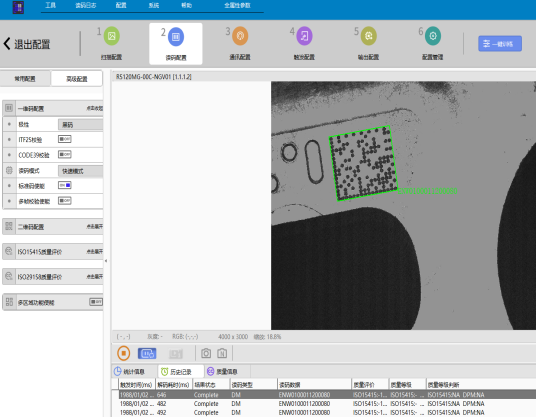

Supporting software | Vcrcode |
Function | (One-dimensional code Code128/Code39/Code93/EAN, etc.; two-dimensional code Vericode, QR/DM/DPM, etc.); Code quality evaluation (ISO/IEC 29158 (AIM-DPM), ISO/IEC 15415, ISO/IEC 15416) |
